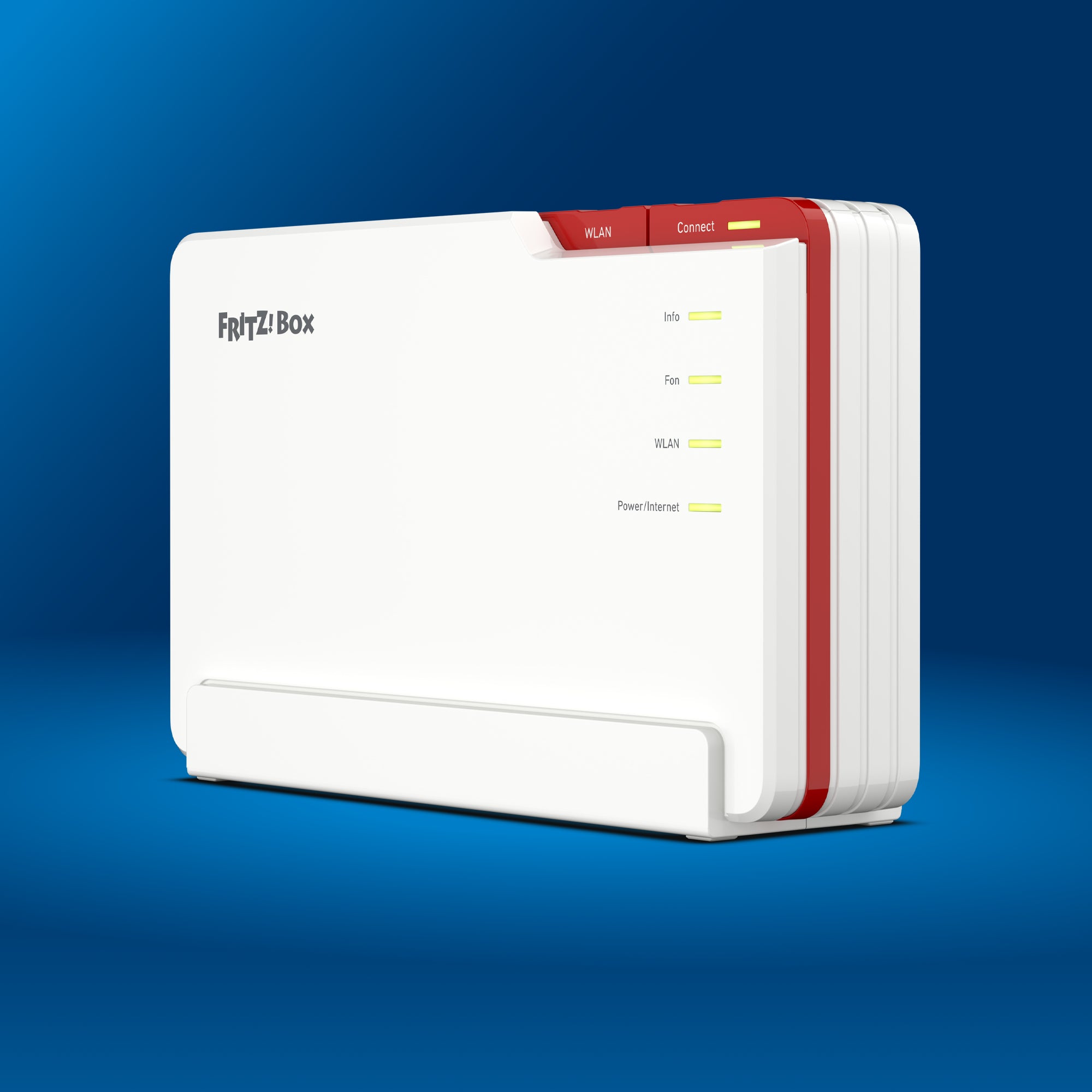

FRITZ!Box 5690 Pro

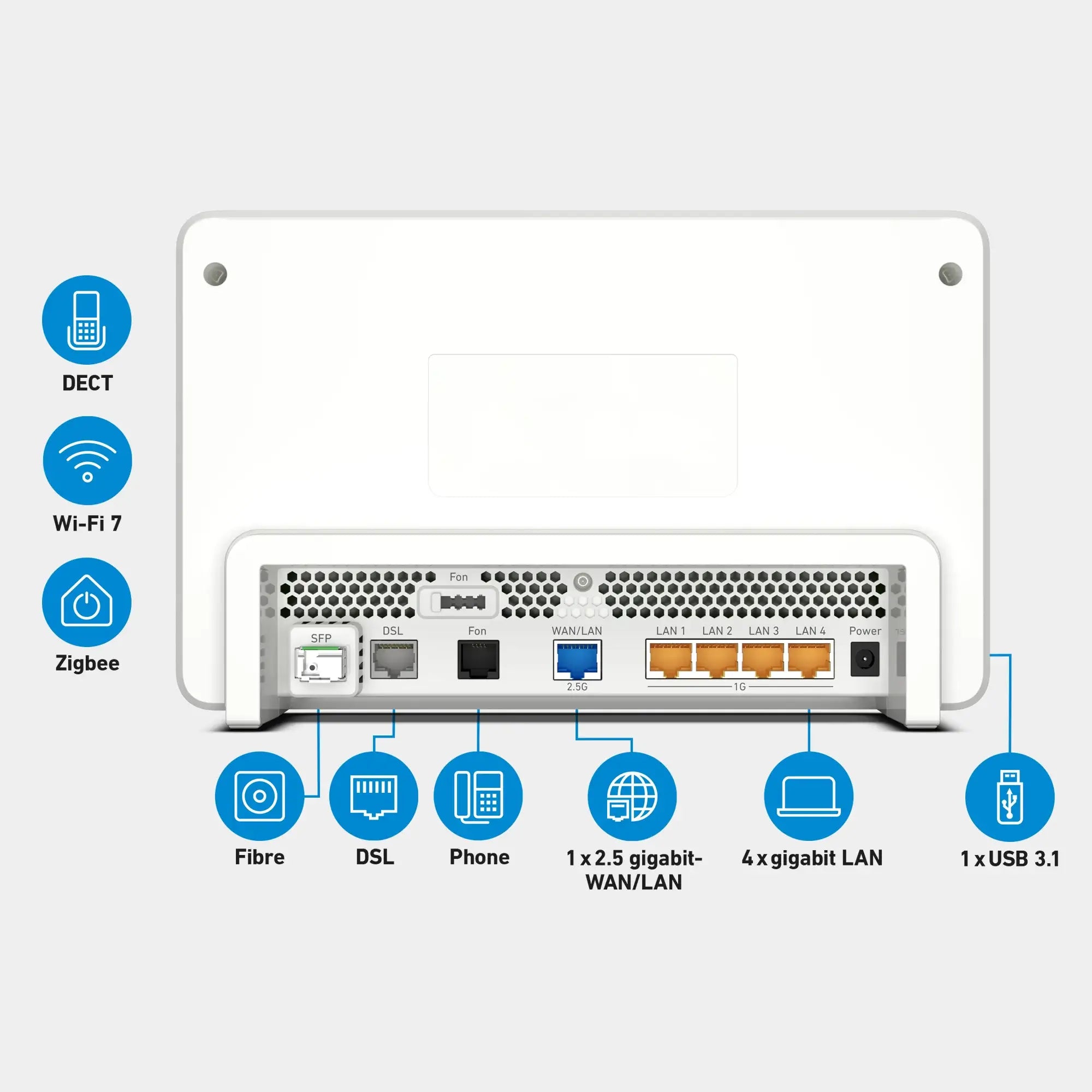

Connections

• 1 x SFP slot for a FRITZ!SFP fibre optic module (AON and GPON supported)

• 1 x (V)DSL up to 300 Mbit/s and ADSL2+

• 1 x 2.5-gigabit WAN

• 4 x gigabit LAN

• Wi-Fi 7 / Wi-Fi 6E / Wi-Fi 6

• DECT base station for cordless phones and smart home

• Zigbee base station for smart home

• 1 x connection (TAE/RJ11) for analogue phone, answering machine or fax

• 1 x USB 3.1 port for storage media and printers

Broadband / Internet

• Fibre optic and DSL router

• For connection to GPON (Gigabit Passive Optical Network) and AON (Active Optical Network)

• Integrated modem for all (V)DSL connections up to 300 Mbit/s (including supervectoring) and ADSL2+

• Router operation via WAN even with cable or fibre optic modem (ONT)

• Fallback protection via USB dongle

• MyFRITZ! – secure access to your own FRITZ!Box from anywhere

• VPN (WireGuard / IPSec)

• Firewall / NAT with port sharing

• Wake on LAN

• Parental controls (time budget, youth protection filter, device block)

Wi-Fi

• up to 18.4 Gbit/s via Wi-Fi 7 / Wi-Fi 6E / Wi-Fi 6

• 6 GHz: up to 11.53 Gbit/s (Wi-Fi 7)
  5 GHz: up to 5760 Mbit/s (Wi-Fi 7)
  2.4 GHz: up to 1200 Mbit/s (Wi-Fi 6)

• 4 x 4 MIMO

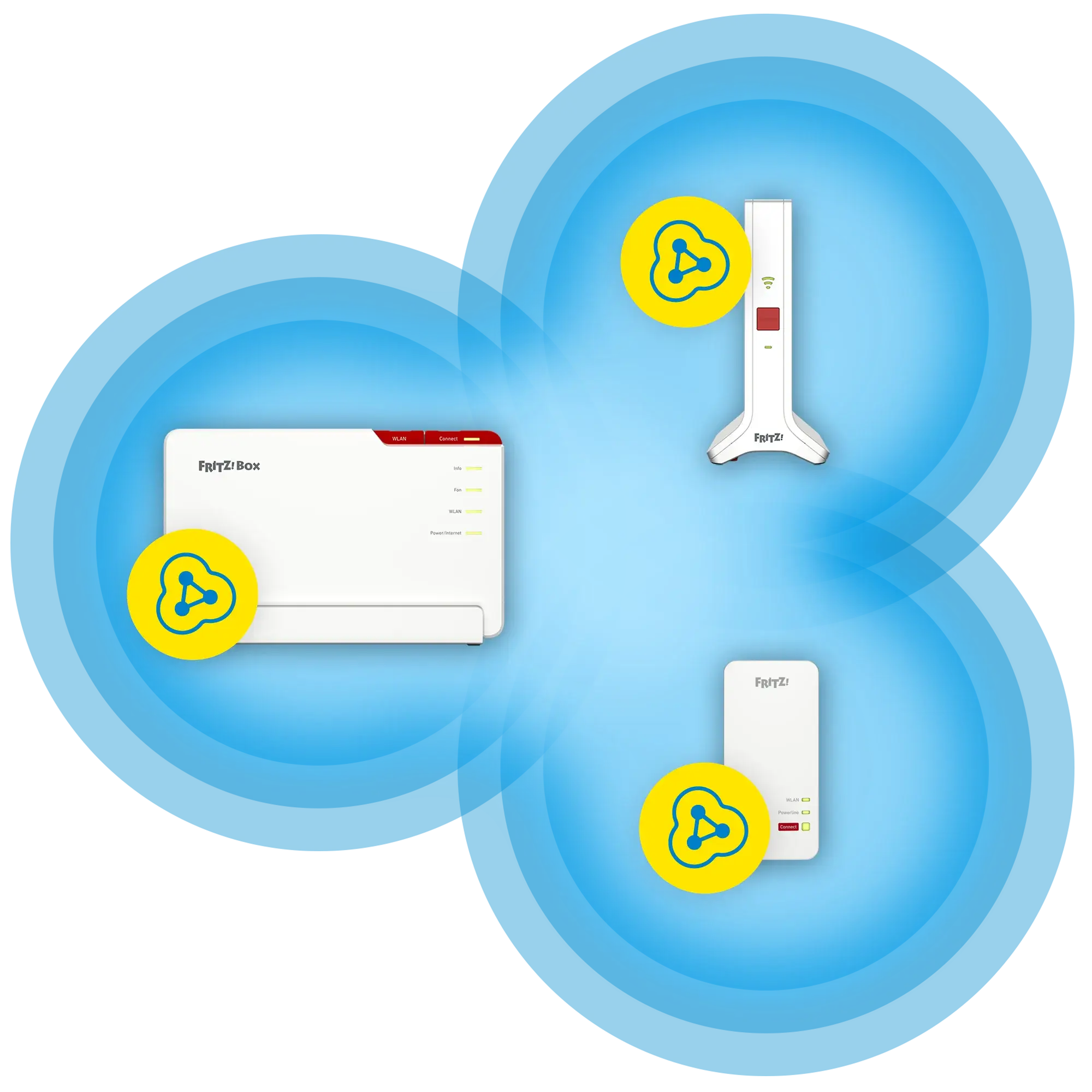

• Mesh Wi-Fi

• Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards

• Wi-Fi network encryption with WPA3/WPA2

• Easy connection at the touch of a button (WPS)

• Wi-Fi guest access / hotspot with captive portal

• Wi-Fi eco mode for optimum performance at minimum power consumption

• Switch Wi-Fi on and off using button, FRITZ!Fon, FRITZ!App, or by schedule

Smart Home / Media

• Smart home features for energy, heating, lighting, and more

• Supports smart home devices in accordance with the DECT ULE standard

• Supports Zigbee for smart home devices from other manufacturers (Zigbee compatibility list)

• Automation in the smart home with schedules, scenes, and routines with if-then combinations

• Operation of your FRITZ! Smart Home via the FRITZ!Box user interface, FRITZ!Fon, FRITZ!DECT-Taster and FRITZ!App Smart Home

• FRITZ!NAS: Central storage for all data in the home network

• Media server for music, photos, and videos in the home network (DLNA/UPnP AV)

• Ideal for IPTV and streaming music and videos

Telefony

• Phone system with DECT base station for up to six cordless phones

• With FRITZ!Fon additional functions (e.g. calendar or weather forecast)

• Port for an analogue phone, answering machine or fax

• Registration of IP phones (LAN/Wi-Fi) SIP-compliant

• Voice transmission encrypted upon delivery

• Supports HD telephony for natural sound

• DECT Eco: Wireless network switches off when DECT phones on standby

• 5 integrated answering machines with option for emailing voice messages

• Local and online phone books (Google, Apple, CardDAV and more)

• Fax function with option for emailing fax message

• Call diversion, internal calls (intercom), three-way conferencing, call transfer, phone number blocks and Do Not Disturb

FRITZ!OS

• Intuitive browser- and app-based user interface

• Free FRITZ!Apps for smartphone: MyFRITZ!App, FRITZ!App Smart Home, FRITZ!App Fon, FRITZ!App Wi-Fi, FRITZ!App TV

• Context-sensitive Online Help

• Push service mails for events in the home network

• Security functions with diagnostic tool, auto-updates, firewall, and filter functions

• Optional energy-saving mode for even more energy efficiency

• Free updates with new functions and optimizations

Device Properties

• Dimensions (W x H x D): 268 x 170 x 75 mm

• Average power consumption: 12.5 - 13.5 W

• Information on data usage in accordance with Regulation (EU) 2023/2854 (Data Act)

Warranty

• 5-year manufacturer’s warranty for end customers, as per the warranty conditions

• 20003058
