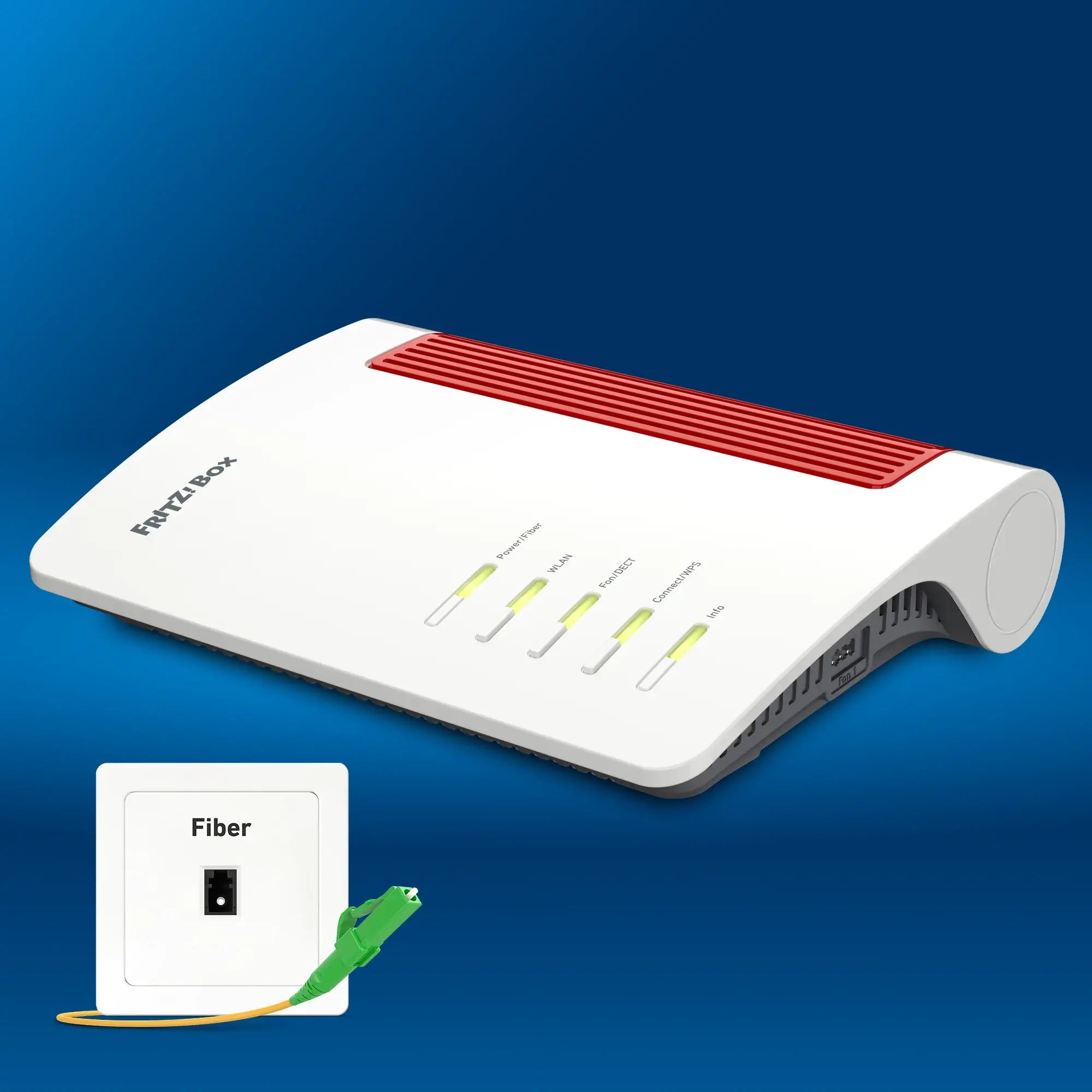

FRITZ!Box 5690 XGS auf blauem Hintergrund mit Glasfaseranschlussdose

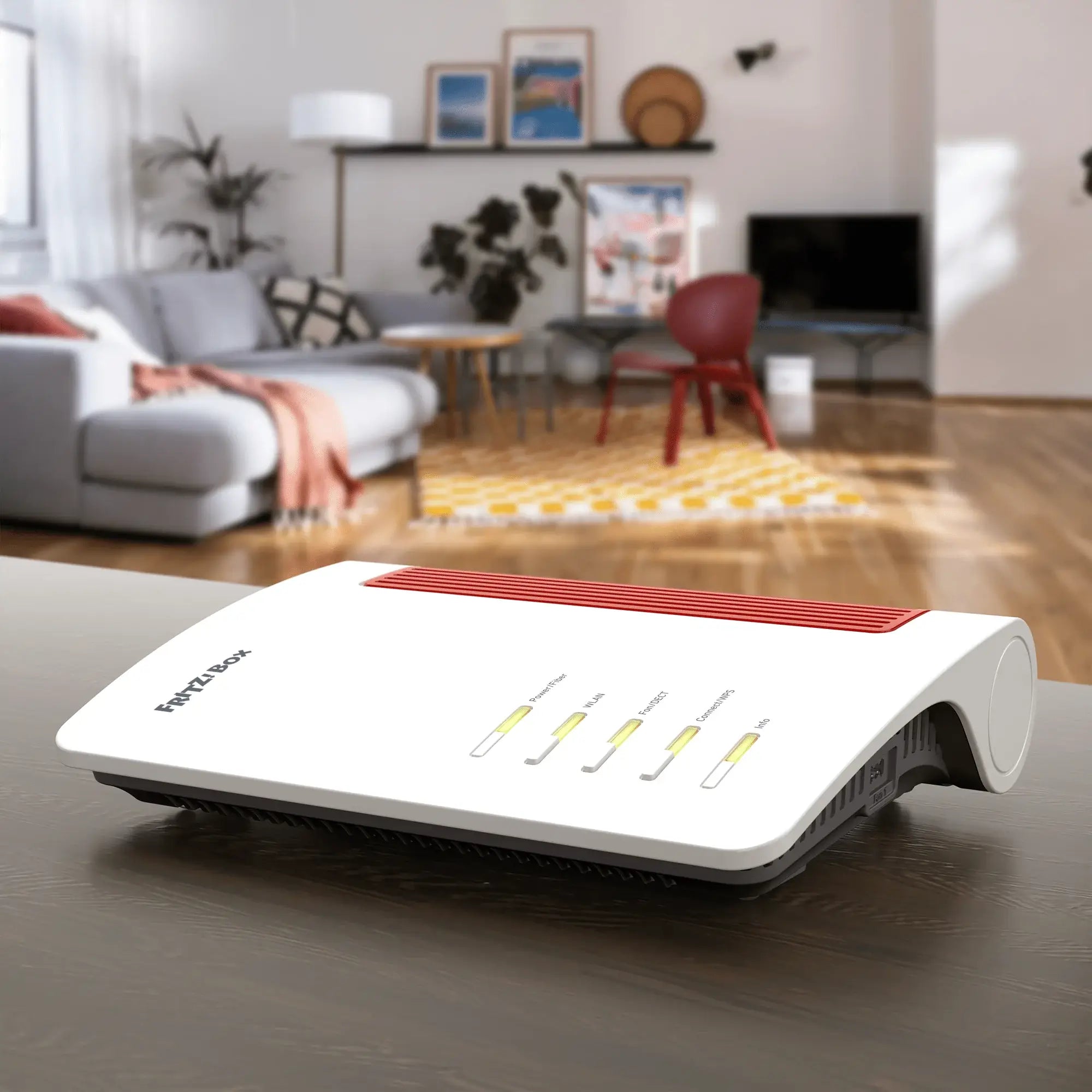

FRITZ!Box 5690 XGS Router auf einem Tisch in modernem Wohnraum, ideal für Highspeed-Internet und smarte Vernetzung.

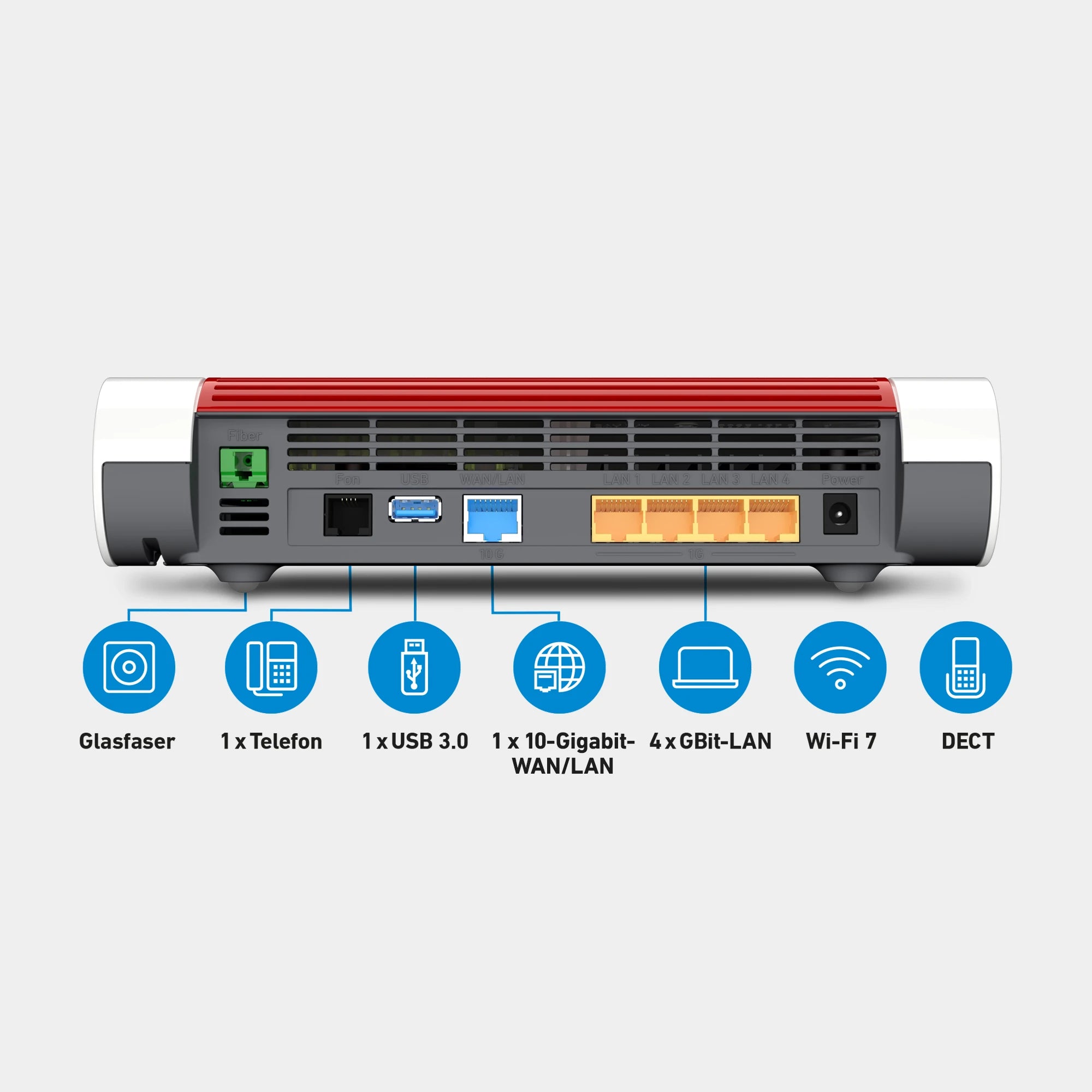

Rückansicht der FRITZ!Box 5690 XGS, Anschlüsse: Glasfaser, 1x Telefon, 1x 10-Gigabit-LAN, 4x Gigabit-LAN, 1x USB, Wi-Fi 7, DECT auf grauem Hintergrund.
Verpackung von FRITZ!Box 5690 XGS auf grauem Hintergrund

FRITZ!Box 5690 XGS

Future-proof surfing – with Wi-Fi 7 and up to 10 Gbit/s fibre optic speed

339,00€
Tax included. Shipping calculated at checkout.
  • High speed with up to 10 Gbit/s via fibre optic
  • Wi-Fi 7 up to 6.4 Gbit/s with Mesh Wi-Fi
  • Intelligent Mesh Wi-Fi extends the home network to every last room
  • Intelligent automation in the smart home for DECT ULE devices
  • Convenient cordless telephony and integrated phone system
  • FRITZ! stands for regular updates, 5-year warranty and top energy efficiency
Show tip

Tip: The FRITZ!Box 5690 XGS can be operated directly on the XGS-PON connection. This fibre optic module is not backward compatible with other fibre optic technologies like GPON and AON. Consult with your provider to find out whether the FRITZ!Box 5690 XGS is compatible with your fibre optic connection.

In stock - delivery within 1-2 business days
  • PayPal
  • Klarna
  • Visa
  • Mastercard
  • American Express
  • Google Pay
  • Apple Pay

The perfect complement
Everything included
  • Network: 1 x 10-gigabit WAN, 4 x gigabit LAN, 1 x USB 3.0
  • Apps: Free FRITZ!Apps for smartphones and tablets
  • Guest access: Share Wi-Fi with guests (also by QR code)
  • VPN: Secure online communication with WireGuard and IPSec
  • Parental Controls: Safe surfing for the family (time budget, youth protection filter, device block)
  • MyFRITZ!: Personal online services for your FRITZ! devices
  • Configuration: Fast and easy via app (or browser)

To Technical Data & Details

Package contents
  • FRITZ!Box 5690 XGS
  • Power adapter
  • 1.5 m LAN cable
  • 4 m fibre optic cable
  • Quick guide

Shipping policy

(1) The delivery times specified by us are calculated from the date of the order confirmation, provided the purchase price has been paid in advance (except for invoice purchases, e.g. via Klarna). If no delivery time or no differing delivery time is specified for the respective goods in our online shop, it is generally 1-2 working days (Monday to Saturday) for deliveries within Germany.

(2) The following delivery restrictions apply: The Provider only delivers to Customers who have their habitual residence (billing address and delivery address) in one of the countries selectable at the time of the order.

(3) The corresponding shipping costs – if applicable – are stated for the Customer in the order process and the order form and are to be borne by the Customer.

(4) The goods are shipped by parcel service (carrier at the Provider’s choice, usually DHL). The Provider bears the risk of loss or damage during shipping if the Customer is a consumer.

FRITZ!Box 5690 XGS – high-speed internet of the next generation

The FRITZ!Box 5690 XGS brings fibre optic power with up to 10 Gbit/s directly into your home – with ultra-fast Wi-Fi 7 and maximum range. Perfect for streaming, gaming and smart networking throughout your home.

Zukunftsweisender Router mit LED-Anzeigen vor einem dynamischen blauen Hintergrund

High speed on the fibre optic connection

The FRITZ!Box 5690 XGS supports XGS-PON. Connect it directly, or use it flexibly via a fibre optic modem (ONT). Configuration is fast and easy via app (or browser).

Bunte Lichtstrahlen um die Ziffer 7 auf blauem Hintergrund, dynamisches und modernes Design.

Wi-Fi 7 - ultra high-speed Wi-Fi for your home network

The FRITZ!Box 5690 XGS boosts your Wi-Fi to a new level – with speeds up to 6448 Mbit/s that guarantee fast downloads, reliable streaming and exciting gaming. Wi-Fi 7 offers extremely accelerated speeds, is especially robust against, and can use multiple Wi-Fi bands for data transmission.

What's more, the FRITZ!Box 5690 XGS supports established Wi-Fi standards such as Wi-Fi 5 and 6. Enjoy the next-generation Wi-Fi experience!

Illustration eines Netzwerks mit Routern und Verbindungen auf blauem Hintergrund für technische Zwecke.

Mesh Wi-Fi with FRITZ! – the intelligent Wi-Fi

Wi-Fi, but smart: In the Mesh the FRITZ!Box as well as connected FRITZ!Repeaters and FRITZ!Powerline work together so that you can enjoy your Wi-Fi. The Mesh technology steers your devices intelligently into the best-suited Wi-Fi band or to the next wireless access point.

From the Wi-Fi network of a FRITZ!Box all the way to a large Mesh Wi-Fi with multiple distributed stations: Mesh from FRITZ! provides for the best Wi-Fi in small and large environments.

Find out more about Mesh Wi-Fi

Smart Home Geräte mit Smartphone-App zur Steuerung der Temperatur und Energieverbrauch in einem modernen Zuhause.

Intelligent automation: Smart home

The FRITZ!Box 5690 XGS is the perfect hub for your smart home with functions for electricity, heating, lighting and more. Add intelligent automations to your home with schedules and powerful if-then routines. Operate your smart home devices conveniently with the FRITZ!App Smart Home, smart home buttons, the FRITZ!Fon, or the FRITZ!Box user interface.

Enhance your home with the intelligent FRITZ! Smart Home!

Frau am Telefon in einer modernen Küche mit frischem Obst und Wasserkrug auf dem Tisch.

Make better calls with FRITZ!

Discover maximum telephony enjoyment with the FRITZ!Box 5690 XGS – with two analogue and with IP or DECT phones: The phone system of the FRITZ!Box holds the connection and helps you organize your daily routine, for instance, with the integrated answering machine.

Set up online contacts from Google, Apple, and other providers in the FRITZ!Box – to keep you contacts synced with your smartphone.

For the perfect telephony experience – with the FRITZ!Box 5690 XGS!

Fritz! Produktlinie mit Fritz!Box, Telefon, Smart Home Geräten auf blauem Hintergrund.

Automatic updates, support and a 5-year warranty: FRITZ! has got it

Your FRITZ!Box receives regular automatic updates with new functions and improved security. FRITZ! means something special: The FRITZ!Box 5690 XGS comes with a 5-year warranty and long product maintenance.

And should you ever have a question – Our friendly support is always happy to help.

Technical specifications

Connections

  • 1 x fibre optic connection (direct connection to XGS-PON networks)

  • 1 x 10-gigabit WAN port (IEEE 802.3bz standard, NBASE-T)

  • 4 x gigabit LAN

  • Wi-Fi 7

  • DECT base station for cordless phones and smart home

  • 1 x connection (TAE/RJ11) for analogue phone, answering machine or fax

  • 1 x USB 3.0 port for storage media and printers

Fiber / Internet

  • Fibre optic router

  • For connecting to XGS-PON (10-gigabit Symmetric Passive Optical Network, ITU-T G.9807)

  • Can also connect to a fibre optic modem (ONT)

  • VPN (WireGuard / IPSec)

  • Firewall / NAT with port sharing

  • Wake on LAN

  • Parental controls (time budget, youth protection filter, device block)

Wi-Fi

  • up to 6448 Mbit/s via Wi-Fi 7

  • 5 GHz: up to 5760 Mbit/s

  • 2.4 GHz: up to 688 Mbit/s

  • 4 x 4 MIMO at 5 GHz, 2 x 2 MIMO at 2.4 GHz

  • Mesh Wi-Fi

  • Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards

  • Wi-Fi network encryption with WPA3/WPA2

  • Easy connection at the touch of a button (WPS)

  • Wi-Fi guest access / hotspot with captive portal

  • Wi-Fi eco mode for optimum performance at minimum power consumption

  • Switch Wi-Fi on and off using button, FRITZ!Fon, FRITZ!App, or by schedule

Smart Home / Media

  • Smart home features for energy and heating

  • Supports smart home devices in accordance with the DECT ULE standard

  • Automation in the smart home with schedules, scenes, and routines with if-then combinations

  • Operation of your FRITZ! Smart Home via the FRITZ!Box user interface, FRITZ!Fon, FRITZ!DECT-Taster and FRITZ!App Smart Home

  • FRITZ!NAS: Central storage for all data in the home network

  • Media server for music, photos, and videos in the home network (DLNA/UPnP AV)

  • Ideal for IPTV and streaming music and videos

Telefony

  • Phone system with DECT base station for up to six cordless phones

  • With FRITZ!Fon additional functions (e.g. calendar or weather forecast)

  • Port for an analogue phone, answering machine or fax

  • Registration of IP phones (LAN/Wi-Fi) SIP-compliant

  • Voice transmission encrypted upon delivery

  • Supports HD telephony for natural sound

  • DECT Eco: Wireless network switches off when DECT phones on standby

  • 5 integrated answering machines with option for emailing voice messages

  • Local and online phone books (Google, Apple, CardDAV and more)

  • Fax function with option for emailing fax message

  • Call diversion, internal calls (intercom), three-way conferencing, call transfer, phone number blocks and Do Not Disturb

FRITZ!OS

  • Push service mails for events in the home network

  • Security functions with diagnostic tool, auto-updates, firewall, and filter functions

  • Free updates with new functions and optimizations

Device Properties

  • Dimensions (W x H x D): 254 x 63 x 191 mm

  • Average power consumption: 8 W

Warranty

  • 5-year manufacturer’s warranty for end customers, as per the warranty conditions

    Article Number

    • 20003105
