FRITZ!Box 6670 Cable

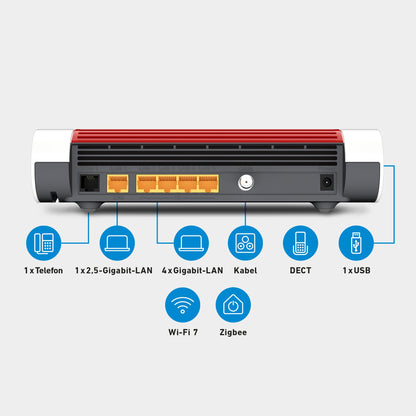

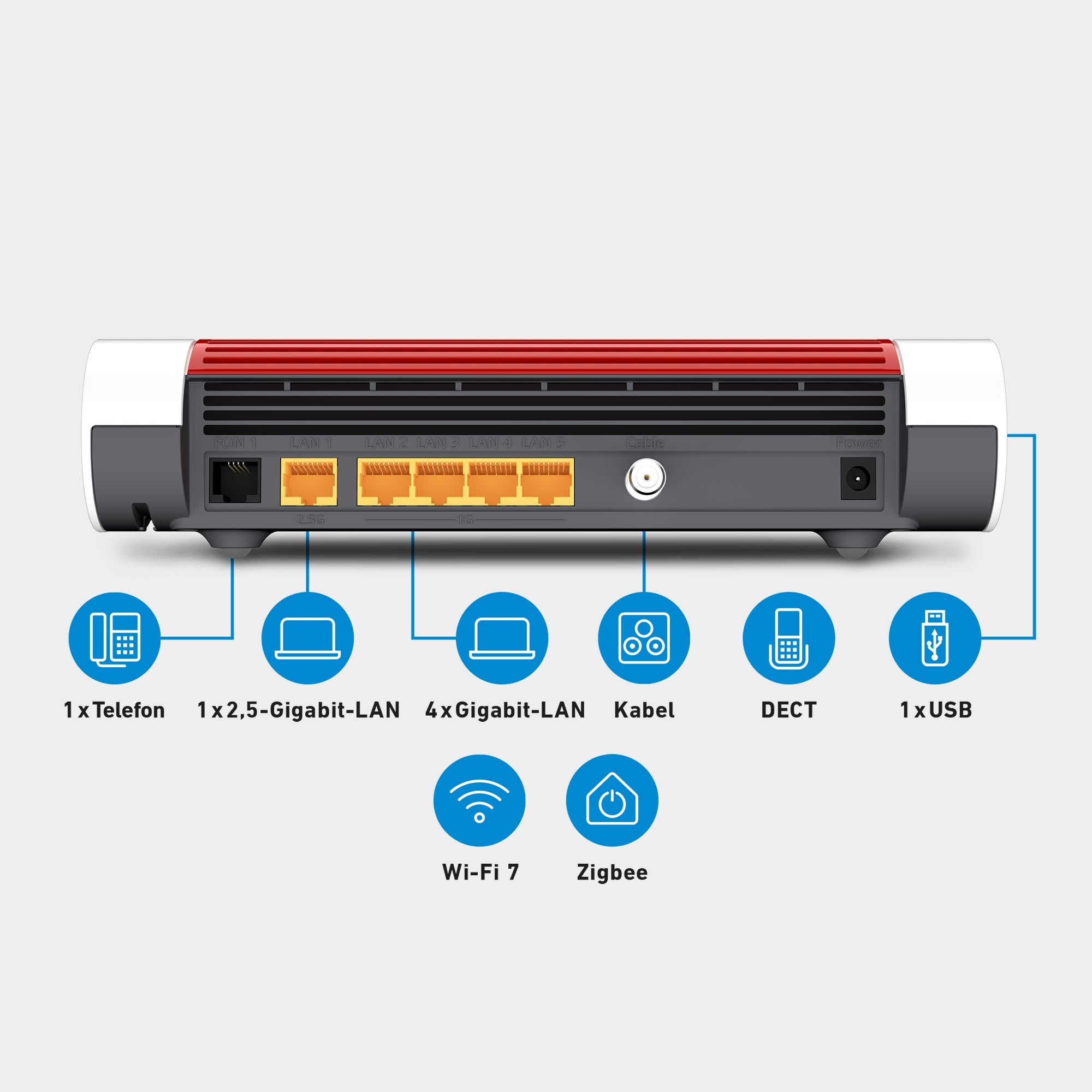

Connections

• 1 x cable (DOCSIS 3.1, backward compatible with EuroDOCSIS 3.0)

• 1 x 2.5-gigabit LAN

• 4 x gigabit LAN

• Wi-Fi 7

• DECT base station for cordless phones and smart home

• Zigbee base station for smart home

• 1 x connection (TAE/RJ11) for analogue phone, answering machine or fax

• 1 x USB 2.0 port for storage media and printers

Cable / Internet

• High-performance wireless router with DHCP server, DynDNS client, UPnP

• Full-band capture tuner

• Fallback protection via USB dongle

• MyFRITZ! – secure access to your own FRITZ!Box from anywhere

• VPN (WireGuard / IPSec)

• Firewall / NAT with port sharing

• Wake on LAN via the internet

• Parental controls (time budget, youth protection filter, device block)

Wi-Fi

• up to 3.5 Gbit/s via Wi-Fi 7

• 5 GHz: up to 2880 Mbit/s
  2.4 GHz: up to 688 Mbit/s

• Mesh Wi-Fi

• Compatible with the IEEE 802.11a/g/n/ac/ax/be Wi-Fi standards

• Wi-Fi network encryption with WPA3/WPA2

• Easy connection at the touch of a button (WPS)

• Wi-Fi guest access / hotspot with captive portal

• Wi-Fi eco mode for optimum performance at minimum power consumption

• Switch Wi-Fi on and off using button, FRITZ!Fon, FRITZ!App or by schedule

Smart Home / Media

• Smart home features for energy, heating, lighting, and more

• Supports smart home devices in accordance with the DECT ULE standard

• Supports Zigbee for smart home devices from other manufacturers (Zigbee compatibility list)

• Automation in the smart home with schedules, scenes, and routines with if-then combinations

• Operation of your FRITZ! Smart Home via the FRITZ!Box user interface, FRITZ!Fon, FRITZ!DECT-Taster and FRITZ!App Smart Home

• FRITZ!NAS: Central storage for all data in the home network

• Simply and securely share files with friends and family

• Media server for music, photos, and videos in the home network (DLNA/UPnP AV)

• Simultaneous transmission of up to four cable TV channels on different devices

• Ideal for IPTV and streaming music and videos

Telefony

• Phone system with DECT base station for up to six cordless phones

• Voice transmission encrypted upon delivery

• With FRITZ!Fon additional functions (e.g. calendar or weather forecast)

• Port for an analogue phone, answering machine or fax

• Registration of IP phones (LAN/Wi-Fi) SIP-compliant

• Supports HD telephony for natural sound

• DECT Eco: Wireless network switches off when DECT phones on standby

• 5 integrated answering machines with option for emailing voice messages

• Local and online phone books (Google, Apple, CardDAV and more) with up to 1000 entries

• Fax function with option for emailing fax message

• Call diversion, internal calls (intercom), three-way conferencing, call transfer, phone number blocks and Do Not Disturb

FRITZ!OS

• Intuitive browser- and app-based user interface

• Free FRITZ!Apps for smartphone

• Context-sensitive Online Help

• Push service mails for events in the home network

• Security functions with diagnostic tool, auto-updates, firewall, and filter functions

• Optional energy-saving mode for even more energy efficiency

• Free updates with new functions and optimizations

Device Properties

• Dimensions (W x H x D): approx. 254 x 191 x 63 mm

• Average power consumption: 11 - 15 W

• Information on data usage in accordance with Regulation (EU) 2023/2854 (Data Act)

Warranty

• 5-year manufacturer’s warranty for end customers, as per the warranty conditions

Package Contents

• FRITZ!Box 6670 Cable

• 1.5-m coaxial cable

• 1.5-m LAN cable

• Power adapter

• Quick guide

• 20003047
